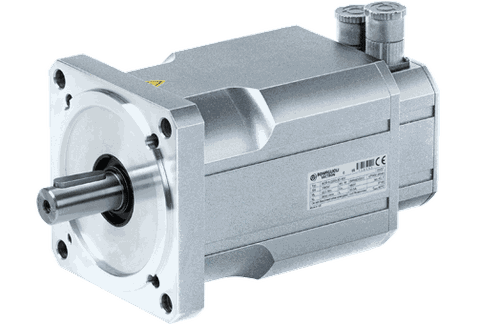

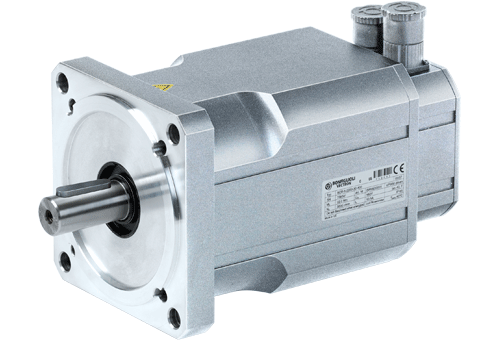

BCR High performance servo motors are designed to satisfy the needs of continuous and transient high torque applications.Thanks to a wide torque range and above average instantaneous overload ratings, BCR servomotors are robust enough for even the most demanding drive applications.Equipped with IP65 push-pull connectors (IP67 connectors are optional), in conformity to EMC requirements, and with a PTC temperature probe with reinforced insulation, these motors guaranteea secure electrical connection under all ambient operating conditions.
Stall torque
0,2 Nm … 115 Nm
Rated speed
2000, 3000, 4500 rpm
Power supply
230, 400 Vac
Inertia
Low for BCR sizes from 0.2 Nm … to 1 Nm
Conformity
2006/95/EC (LVD) and 2004/108/EC (EMC)
DC brake
Optional 24 Vdc
Certification
CE, UL
| Type | Torquess Nm |
|---|---|
| BCR2 0020 | 0.20 |
| BCR2 0040 | 0.40 |
| BCR2 0060 | 0.60 |
| BCR2 0080 | 0.80 |
| BCR3 0065 | 0.65 |
| BCR3 0130 | 1.30 |
| BCR3 0250 | 2.50 |
| BCR4 0100 | 1.00 |
| BCR4 0260 | 2.60 |
| BCR4 0530 | 5.30 |
| BCR4 0750 | 7.50 |
| BCR5 0660 | 6.60 |
| BCR5 1050 | 10.50 |
| BCR6 1350 | 13.50 |
| BCR5 1700 | 17.00 |
| BCR5 2200 | 22.00 |
| BCR6 1350 | 13.50 |
| BCR6 1900 | 19.00 |
| BCR6 2200 | 22.00 |
| BCR6 2900 | 29.00 |
| BCR7 2700 | 27.00 |
| BCR7 3200 | 32.00 |
| BCR7 4000 | 40.00 |
| BCR8 0400 | 40.00 |
| BCR8 0680 | 68.00 |
| BCR8 0930 | 93.00 |
| BCR8 1150 | 115.00 |
