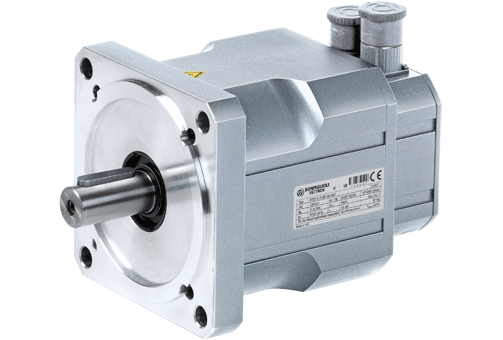

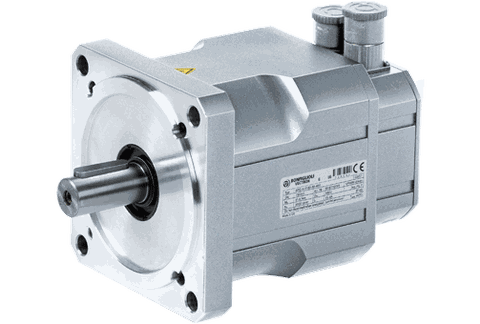

MOTOR SERVO BTD

BTD Compact servo motor Series servomotors are designed to provide effective solutions for applications demandinghigh efficiency, compact motors.The extremely small size of these actuators, achieved by the use of advanced materials and designtechnology, ensures exceptional dynamics and low temperature operation.Equipped with IP65 push-pull connectors (IP67 connectors are optional), in conformity to EMC requirements, and a PTC temperature probe with reinforced insulation, these motors guarantee secure electrical connections under all ambient operating conditions.

Stall mô-men xoắn
0,26 Nm ... 27 Nm

đánh giá tốc độ
3000, 4500 min-1

cung cấp điện
230, 400 Vac

Quán tính
thấp với kích thước BTD từ 0,26 Nm ... đến 1 Nm

phù hợp
2006/95 / EC (LVD) và 2004/108 / EC (EMC)

DC phanh
Tùy chọn 24 Vdc

chứng nhận
CE, UL
