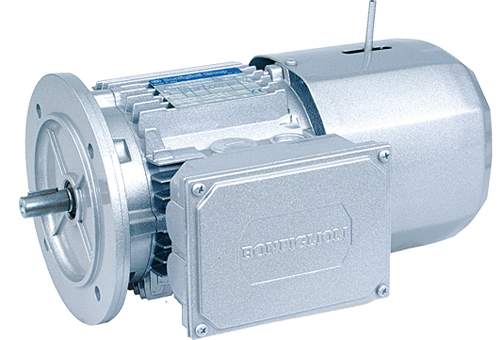

MOTOR CÓ PHANH.

The IEC-normalized BN motors comply with all the applicable international standards, including the EMC and LV Directives. They are available in the 0.06 - 30 kW range in the foot and the flange mounting version, the latter in both the IM B5 and the IM B14 configuration. Single and dual pole versions available with generally, three brake options offered, one DC and two AC supply, lending further flexibility to the system. Finally, all motors are inverter duty.

kW rating (4 pole)
0.06 kW ... 30 kW

Frame Sizes
56A ... 200L

Pole Numbers
2, 4, 6, 8, 2/4, 2/6, 2/8, 2/12, 4/6, 4/8

Mounting Options
Foot IM B3
Flange IM B5 and IM B14

Operation
50 Hz and 60 Hz

Compliance
2006/95/EC (LVD) and 2004/108/EC (EMC)

Inverter Duty
All frame sizes

Housing
Cast aluminium

Main Brake Features
DC and AC supply
Faster brake engage/disengage through electronically
Controlled AC/DC rectifier type SB, NBR, SBR (options)

Main Options
Thermistors and thermostates sensors
Separate supply forced ventilation
Line driver and push-pull incremental encoder
CSA and UL approved design
