HỘP GIẢM TỐC TRỤC VUÔNG GÓC, BÁNH RĂNG CÔN

The designs of K series helical bevel gear motor

K….Y… Foot-mounted helical-bevel gear motor with solid shaft	KAB…Y… Foot-mounted helical-bevel gear motor with hollow shaft	KA….Y… Helical-bevel gear motor with hollow shaft

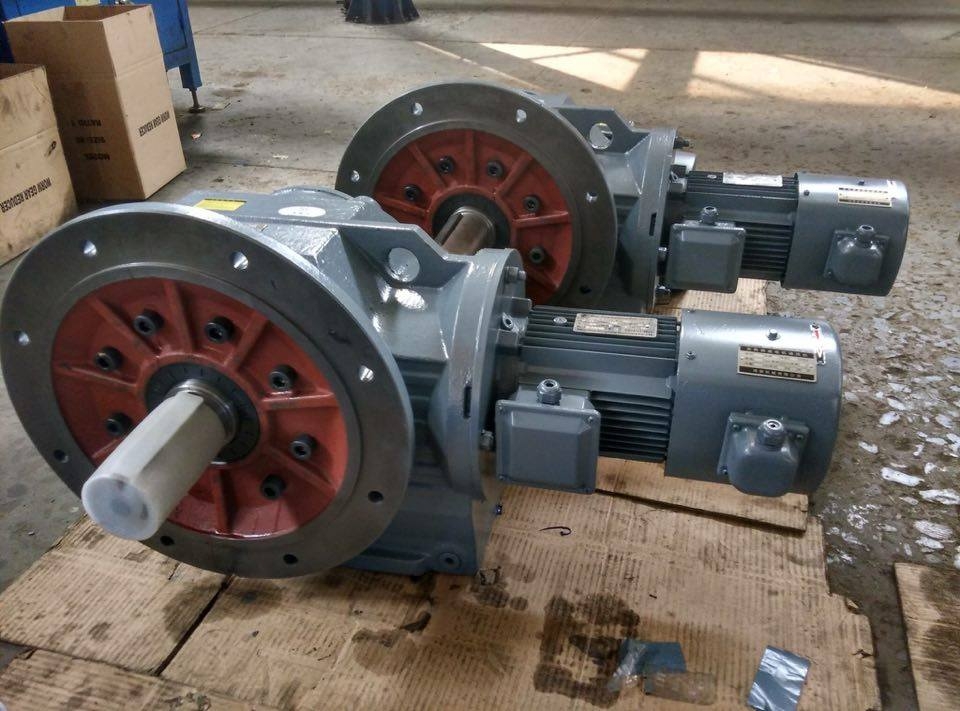

KF…Y… Flange-mounted helical-bevel gear motor with solid shaft	KAF…Y… Flange-mounted helical –bevel gear motor with hollow shaft	KAT…Y… Torque-arm mounted helical-bevel gear motor with hollow shaft
K(KF.KA.KAF.KAB.KAZ)S … Shaft input helical-bevel gear motor	KA(K..KF,.KAF..KAB.KAZ.).RF..Y.. Combination helical-bevel gear motor	KA(K.KF,KAF,KAB,KAZ) S…RF.. Shaft input combination helical-bevel gear motor

K series gearbox is one kind of Helical Bevel type gearbox , High-stainless cast iron case . ,it is designed based on modularization , which bring many difference kinds of combinations ,mounting types ,and structure designs .The detail classification of ratio can meet various of working condition 。High Transmission efficiency ,Low energy consumption, superior performance . The hard tooth surface  gear use the high quality alloy steel , the process of carburizing and quenching, grinding ,which give it follow characters : Stable transmission , low noise and temperature  ,high loading ,long working life.  which widely use for industry equipment of metallurgy ,Building Material , Chemical , Mining , Oil, Transportation , Papermaking , Sugar making , engineering Machines ,etc .

Your benefits

High power density

Wear-free

Long service life

> 90% gear unit efficiency

Multi-stage gear unit for low output speeds

two-stage or three-stage versions

Reduced backlash option for three-stage version

Available Version :

Foot-mounted or flange-mounted

B5 or B14 Flange-mounted

Solid or hollow shaft

Hollow shaft with keyed connection, shrink disk, splined hollow shaft

Power: 0.18-220KW

Ratio range : 5.36-32625

Output speed: 0.1-270 RPM

Output torque; up to 50000 N.m

Mounting type: Foot / Flange / Shaft Mouting

Output shaft type: Hollow / solid .

Input power rating and Max Torque
